EZ-Form Brailon Duplicator

To this day, the E-Z Thermoform Machine is the most accurate way to reproduce Braille Text and tactile graphics. Safe and easy to use, the EZ-Form makes permanent and inexpensive teaching aids and Braille copies from a single master and Brailon.

To this day, the EZ-Form Brailon Duplicator is the most accurate way to reproduce Braille Text and tactile graphics. Safe and easy to use, the EZ-Form makes permanent and inexpensive teaching aids and Braille copies from a single master and Brailon.

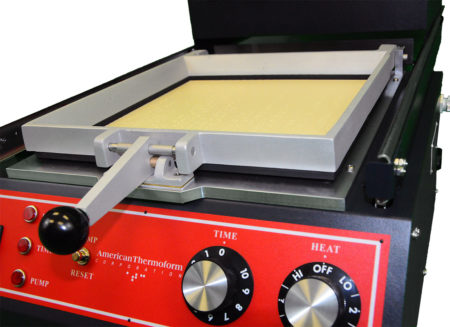

The Thermoform Machine is extremely easy to use - simply place your master copy or mold onto the machine, then place a sheet of our special plastic material, Brailon, on top of it and close the clamp. Once the clamp has been engaged, slide the heating element to the front (covering the master) and wait a few seconds. After this short period, you will be notified that the copy has been made and it's time to slide the heating element back. Disengage the clamp and remove the Brailon copy. The entire process takes just a matter of seconds and you'll have a stunning reproduction of your master copy.

Each EZ-Form includes one frame, please choose which frame you would like under the Comments section during the check-out process. Frame choices are below.

Please note that we only recommend the use of Brailon with these machines. Brailon is a safe, non-toxic plastic material that has been specially formulated for these machines. The use of non-Brailon materials may be hazardous and dangerous.

Maximum Forming Area:

  • One inch less than each dimension of sheet

Frame & Sheet sizes:

  • 11x11.5″
  • 9.75x11.5″
  • 8.5x11″
  • 21x29.7cm / A4

Electrical:

  • Voltage: 115V or 220V (+/- 10%), 50/60 Hz
  • Current: 115V: 15A max
  • 220V: 8A max

Measurements:

  • Height: 16”
  • Width: 16.25”
  • Length: 28″ with oven closed, 37” with oven open
  • Weight: 50 pounds

Maxi-Form is CE Certified for International usage
